TECHNICAL CHARACTERISTICS
MATERIAL
INSULATOR: LCP
FLAMABILITY RATING: UL94-V0
COLOR: BLUE
CONTACT MATERIAL: PHOSPHORE BRONZE
CONTACT TYPE: STAMPED
CONTACT PLATING: UNDERPLATE 1.27 to 2.54 μm Ni
CONTACT AREA 0.76 μm Gold
SOLDER TAIL AREA 2.54 to 5.08 μm Matt Tin
SHIELDING: BRASS MATT TIN PLATED
ENVIRONMENTAL
OPERATING TEMPERATURE: -20 up to +85°C
COMPLIANCE: RoHS & LEAD FREE AS PER DIRECTIVE 2002/95/EC
HALOGEN FREE COMPLIANT AS PER IEC 61249-2-21
A
PCB LAYOUT * - COMPONENT VIEW
ELECTRICAL
CURRENT RATING:
- PIN 1 & PIN 4 (Vbus & corresponding ground PIN) 1.8A Max
- OTHER PINS 0.25 A Max
WORKING VOLTAGE: 30Vac
DIELECTRIC WITHSTANDING VOLTAGE: 100Vac/min
INSULATION RESISTANCE: > 100M ?
CONTACT RESISTANCE:
- PIN 1 & PIN 4: 30m ? Max
- OTHER PINS: 50m ? Max
STANDARD
CERTIFIED: E323964 / MODEL NUMBER 692141030100
MECHANICAL
INSERTION FORCE: 35.0N Max
EXTRACTION FORCE: 10.0N min
QUALITY CLASS: 5000 MATING CYCLES
SOLDERING
WAVE & REFLOW PROCESS AS PER JEDEC J-STD-020D
PACKAGING
TRAY
B
C
RoHS Compliant
* NOTE: THE RECOMMENDED PCB LAYOUT IS FOR AN OPTIMIZED RETENTION FORCE OF CONNECTOR ON PCB BUT IT IMPLIES INSERTION FORCE THAT A LOT OF PICK AND PLACE MACHINES ARE NOT ABLE TO HANDLE. THEREFORE IT MIGHT BE NECESSARY TO
DRILL BIGGER HOLES FOR THE CLIPS. PLEASE CHECK THIS CARFULLY.
G
PROJECTION:
GENERAL TOLERANCE
F
E
D
12-AUG-13
08-DEC-11
09-NOV-11
CHARACTERISTIC
PINNING
STENCIL
QL
GG
GG
.X = +/- 0.2
.XX = +/- 0.15
C
B
A
REV
21-SEP-11
10-MAY-11
04-AUG-10
DATE
NOTE
UL
PDF
FILE
GG
GG
JP
BY
APPROVAL: RJ
UNIT: MM
SCALE:
SHEET: 1/3
DRAW: JOE

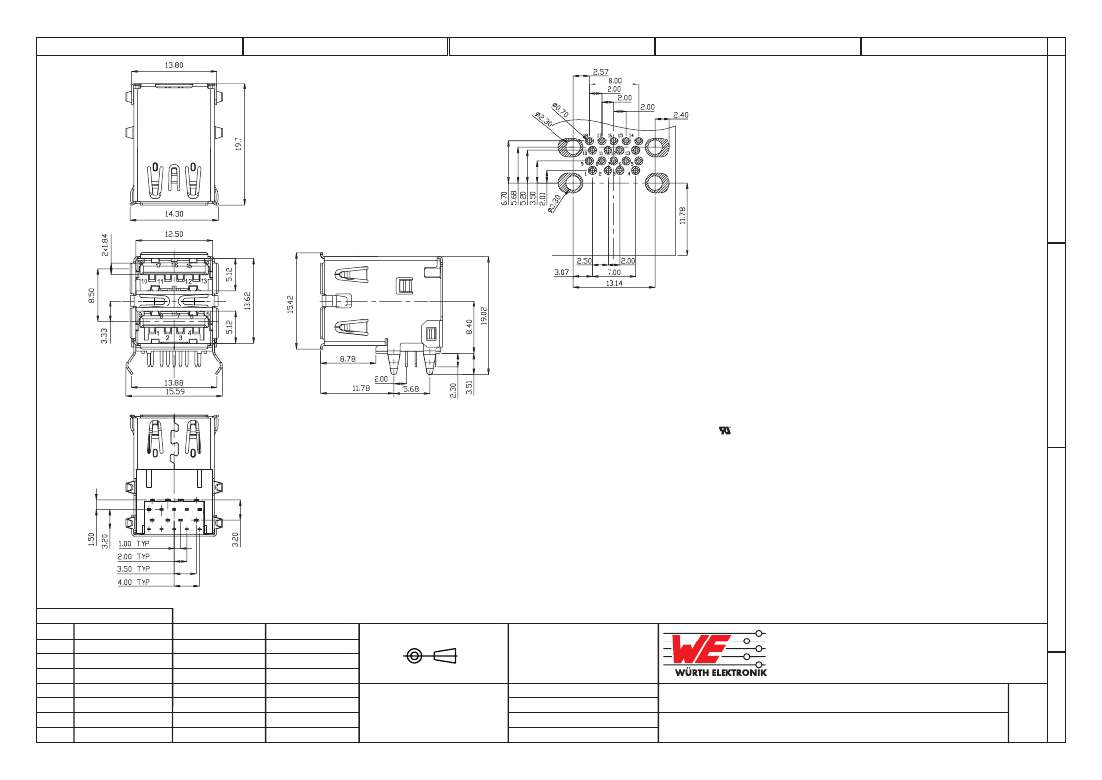

DESCRIPTION: USB 3.0 STACKED TYPE A
WERI PART NO: 692 141 030 100
SIZE
A4
D
